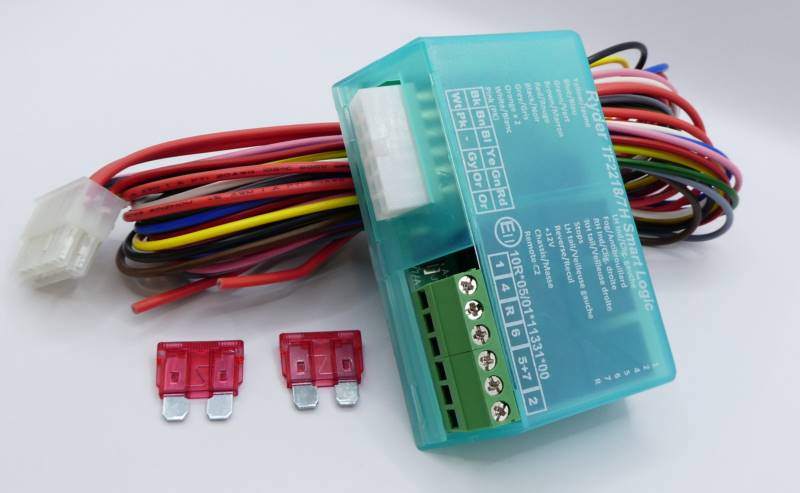

Ryder Towing TF2218/7H Smart Logic 7-Way Bypass with Plug-in Loom
VAT included • Free UK delivery on orders over £50
Description
Smart 7-way bypass module. Puts no load on the car's light circuits. Has a built-in buzzer. Compatible with most cars including PWM systems. Connect the 7 core cable from the trailer socket to the relay as per diagram and the appropriate wires from the relay to the vehicle loom. Insert a 15amp fuse at the power source and connect a test board to the socket. Test the installation by turning the car lights on and off and observing the lights on the test board. IMPORTANT! Dual lamp function: If brake light and tail light or fog light and tail light share a common wire do not connect either of the side light wires (Black or Brown) from the relay to the car. The relay will interpret the signal on the brake signal wire (Red) or fog signal wire (Blue) and operate the lights, including the side lights, correctly.
Need professional fitting?
Book Installation ServiceSpecifications
Full Description
Smart 7-way bypass module. Puts no load on the car’s light circuits. Has a built-in buzzer. Compatible with most cars including PWM systems.
Connect the 7 core cable from the trailer socket to the relay as per diagram and the appropriate wires from the relay to the vehicle loom. Insert a 15amp fuse at the power source and connect a test board to the socket. Test the installation by turning the car lights on and off and observing the lights on the test board.
IMPORTANT! Dual lamp function: If brake light and tail light or fog light and tail light share a common wire do not connect either of the side light wires (Black or Brown) from the relay to the car. The relay will interpret the signal on the brake signal wire (Red) or fog signal wire (Blue) and operate the lights, including the side lights, correctly.
