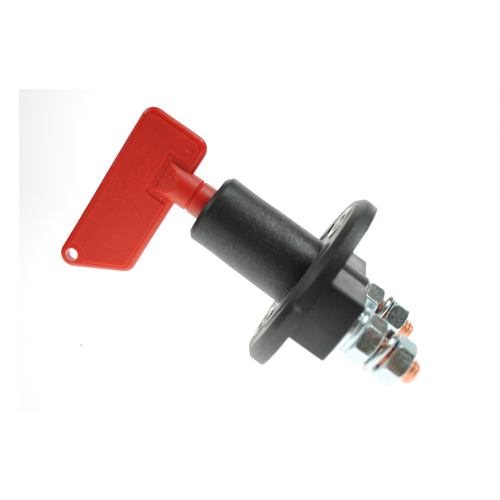

MP604 Single Pole Battery Cut Off Switch
VAT included • Free UK delivery on orders over £50
Description
MP604 Single Pole Battery Cut Off Switch Standard compact manual battery disconnect switch that features a removable handle with a plastic body Rated to 100A continuous current this switch is ideal for light duty applications 100 amp continuous rate Removable key for safety and security Suitable for use with towing and touring auxiliary batteries Operating Voltage: 12V-24V DC Terminals: M8 zinc plated steel Ingress Protection: IP4X Max Continuous Current: 100A Intermittent Current: 500A (5 sec) Circuitry: SPST Mounting: Flange mount Contacts: Copper Operating Temperature: -40֯c to +85֯c
Need professional fitting?
Book Installation ServiceSpecifications
Full Description
MP604 Single Pole Battery Cut Off Switch
- Standard compact manual battery disconnect switch that features a removable handle with a plastic body
- Rated to 100A continuous current this switch is ideal for light duty applications
- 100 amp continuous rate
- Removable key for safety and security
- Suitable for use with towing and touring auxiliary batteries
- Operating Voltage: 12V-24V DC
- Terminals: M8 zinc plated steel
- Ingress Protection: IP4X
- Max Continuous Current: 100A
- Intermittent Current: 500A (5 sec)
- Circuitry: SPST
- Mounting: Flange mount
- Contacts: Copper
- Operating Temperature: -40֯c to +85֯c
